DEMO_ADMM - Example of use of the ADMM solver

Description

The demo file present an example of the ADMM (alternating direction method of multipliers) solver. Unfortunately, this method is not fully automatic and the user needs to define the functions in a particular way.

Please read the paper of Boyd "Distributed Optimization and Statistical Learning via the Alternating Direction Method of Multipliers" to be able to understand this demonstration file.

ADMM is used to solve problem of the form

\begin{equation*} sol = \min_x f_1(y) + f_2(x) \hspace{1cm} s.t. \hspace{1cm} y=Lx \end{equation*}

In this demonstration file, we tackle the following problem

\begin{equation*} arg \min_x \tau \|Mx-z\|_2^2 + \|Lx\|_1 \end{equation*}

where \(z\) are the measurements, \(W\) the discrete wavelet transform, \(M\) a masking operator and \(\tau\) a regularization parameter. Clearly, setting \(Lx=y\) allows to recover the general form for ADMM problem. Contrarily to the other solvers of the UNLocBoX the solver require special proximal operators.

Here \(f_1(x) = \tau \|Mx-z\|_2^2\) would normally take the following proximal operator:

f1.prox = @(x, t) ( 1 + tau * t * mask ).^(-1) .* ( x + tau * t * mask.*z);
f1.eval = @(x) tau * norm(mask .* x - z)^2;

which correspond to the solution of the following problem

\begin{equation*} prox_{f1,t} (z) = arg \min_{x} \frac{1}{2} \| x - z \|_2^2 + t \| M x - y \|_2^2 \end{equation*}

However, the ADMM algorithm requires to solve a special proximal operator instead:

\begin{equation*} prox_{f1,t}^L (z) = arg \min_{x} \frac{1}{2} \| L x - z \|_2^2 + t \| M x - y \|_2^2 \end{equation*}

which is define in MATLAB as:

f1.proxL = @(x, t) ( 1 + tau * t * mask ).^(-1) .* ( Lt(x) + tau * t * mask.*z);
f1.prox = @(x, t) ( 1 + tau * t * mask ).^(-1) .* ( x + tau * t * mask.*z);
f1.eval = @(x) tau * norm(mask .* x - z)^2;

where Lt it the adjoint of the \(L\) ( here the inverse wavelet transform) Because the wavelet transform is an orthonormal basis.

The function \(f_2(y) = \| y \|_1\) is defined in MATLAB as:

param_l1.verbose = verbose - 1;
f2.prox = @(x, T) prox_l1(x, T, param_l1);
f2.eval = @(x) norm_l1(L(x));
f2.L = L;
f2.Lt = Lt;

Note the field f2.L and f2.Lt that indicate that the real function function is actually \(f_2(Ly) =\| Lx \|_1\).

Results


Original image

This figure shows the original Lena image.

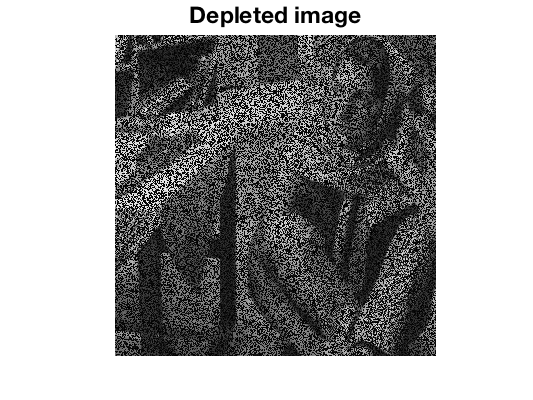

Depleted image

This figure shows the image after the application of the mask and addition of the noise. Note that 50% of the pixels have been removed.

Reconstructed image

This figure shows the reconstructed image thanks to the algorithm.

This code produces the following output:

UnLocBoX version 1.7.3. Copyright 2012-2015 LTS2-EPFL, by Nathanael Perraudin
LTFAT version 2.2.0. Copyright 2005-2016 Peter L. Søndergaard. For help, please type "ltfathelp". LTFAT is using the MEX backend.
(Your global and persistent variables have just been cleared. Sorry.)
The time step is set manually to : 1
Algorithm selected: ADMM
Iter 001:     prox_L1: ||A x-y||_1 = 1.299666e+03, REL_OB, iter = 2
  f(x^*) = 8.465667e+03, rel_eval = 6.445999e-16
   Relative norm of the primal variables: 2.692005e-15
   Relative norm of the dual variables: 9.468190e-01
Iter 002:     prox_L1: ||A x-y||_1 = 2.931166e+03, REL_OB, iter = 2
  f(x^*) = 1.198212e+04, rel_eval = 2.934748e-01
   Relative norm of the primal variables: 6.215944e-01
   Relative norm of the dual variables: 4.690195e-01
Iter 003:     prox_L1: ||A x-y||_1 = 4.013392e+03, REL_OB, iter = 2
  f(x^*) = 1.047566e+04, rel_eval = 1.438055e-01
   Relative norm of the primal variables: 2.774620e-01
   Relative norm of the dual variables: 2.052393e-01
Iter 004:     prox_L1: ||A x-y||_1 = 4.715018e+03, REL_OB, iter = 2
  f(x^*) = 8.991133e+03, rel_eval = 1.651100e-01
   Relative norm of the primal variables: 6.585760e-02
   Relative norm of the dual variables: 5.436986e-02
Iter 005:     prox_L1: ||A x-y||_1 = 5.171634e+03, REL_OB, iter = 2
  f(x^*) = 8.208612e+03, rel_eval = 9.532923e-02
   Relative norm of the primal variables: 1.272158e-01
   Relative norm of the dual variables: 9.229436e-02
Iter 006:     prox_L1: ||A x-y||_1 = 5.482934e+03, REL_OB, iter = 2
  f(x^*) = 8.111947e+03, rel_eval = 1.191646e-02
   Relative norm of the primal variables: 1.459032e-01
   Relative norm of the dual variables: 1.056078e-01
Iter 007:     prox_L1: ||A x-y||_1 = 5.752854e+03, REL_OB, iter = 2
  f(x^*) = 8.382452e+03, rel_eval = 3.227047e-02
   Relative norm of the primal variables: 9.245724e-02
   Relative norm of the dual variables: 7.060752e-02
Iter 008:     prox_L1: ||A x-y||_1 = 6.075547e+03, REL_OB, iter = 2
  f(x^*) = 8.689643e+03, rel_eval = 3.535141e-02
   Relative norm of the primal variables: 4.356341e-02
   Relative norm of the dual variables: 3.760963e-02
Iter 009:     prox_L1: ||A x-y||_1 = 6.426976e+03, REL_OB, iter = 2
  f(x^*) = 8.865207e+03, rel_eval = 1.980364e-02
   Relative norm of the primal variables: 4.157433e-02
   Relative norm of the dual variables: 3.315877e-02
Iter 010:     prox_L1: ||A x-y||_1 = 6.734469e+03, REL_OB, iter = 2
  f(x^*) = 8.898893e+03, rel_eval = 3.785489e-03
   Relative norm of the primal variables: 3.953241e-02
   Relative norm of the dual variables: 3.098382e-02
Iter 011:     prox_L1: ||A x-y||_1 = 6.979770e+03, REL_OB, iter = 2
  f(x^*) = 8.855191e+03, rel_eval = 4.935186e-03
   Relative norm of the primal variables: 2.973070e-02
   Relative norm of the dual variables: 2.458637e-02
Iter 012:     prox_L1: ||A x-y||_1 = 7.177454e+03, REL_OB, iter = 2
  f(x^*) = 8.797021e+03, rel_eval = 6.612545e-03
   Relative norm of the primal variables: 2.175648e-02
   Relative norm of the dual variables: 1.911560e-02
Iter 013:     prox_L1: ||A x-y||_1 = 7.347462e+03, REL_OB, iter = 2
  f(x^*) = 8.758075e+03, rel_eval = 4.446881e-03
   Relative norm of the primal variables: 1.856954e-02
   Relative norm of the dual variables: 1.658661e-02
Iter 014:     prox_L1: ||A x-y||_1 = 7.494467e+03, REL_OB, iter = 2
  f(x^*) = 8.744047e+03, rel_eval = 1.604211e-03
   Relative norm of the primal variables: 1.691199e-02
   Relative norm of the dual variables: 1.504532e-02
Iter 015:     prox_L1: ||A x-y||_1 = 7.625410e+03, REL_OB, iter = 2
  f(x^*) = 8.746577e+03, rel_eval = 2.892045e-04
   Relative norm of the primal variables: 1.502511e-02
   Relative norm of the dual variables: 1.363501e-02
Iter 016:     prox_L1: ||A x-y||_1 = 7.745730e+03, REL_OB, iter = 2
  f(x^*) = 8.754933e+03, rel_eval = 9.544959e-04
   Relative norm of the primal variables: 1.355962e-02
   Relative norm of the dual variables: 1.245494e-02
Iter 017:     prox_L1: ||A x-y||_1 = 7.857157e+03, REL_OB, iter = 2
  f(x^*) = 8.762592e+03, rel_eval = 8.739763e-04
   Relative norm of the primal variables: 1.236370e-02
   Relative norm of the dual variables: 1.141686e-02
Iter 018:     prox_L1: ||A x-y||_1 = 7.961739e+03, REL_OB, iter = 2
  f(x^*) = 8.767062e+03, rel_eval = 5.098806e-04
   Relative norm of the primal variables: 1.128135e-02
   Relative norm of the dual variables: 1.056372e-02
Iter 019:     prox_L1: ||A x-y||_1 = 8.057635e+03, REL_OB, iter = 2
  f(x^*) = 8.768380e+03, rel_eval = 1.503227e-04
   Relative norm of the primal variables: 1.047710e-02
   Relative norm of the dual variables: 9.806675e-03
Iter 020:     prox_L1: ||A x-y||_1 = 8.146448e+03, REL_OB, iter = 2
  f(x^*) = 8.767831e+03, rel_eval = 6.257691e-05
   Relative norm of the primal variables: 9.716992e-03
   Relative norm of the dual variables: 9.142954e-03
Iter 021:     prox_L1: ||A x-y||_1 = 8.227502e+03, REL_OB, iter = 2
  f(x^*) = 8.766682e+03, rel_eval = 1.310710e-04
   Relative norm of the primal variables: 9.088305e-03
   Relative norm of the dual variables: 8.559725e-03
Iter 022:     prox_L1: ||A x-y||_1 = 8.303603e+03, REL_OB, iter = 2
  f(x^*) = 8.765906e+03, rel_eval = 8.853839e-05
   Relative norm of the primal variables: 8.578264e-03
   Relative norm of the dual variables: 8.123452e-03
Iter 023:     prox_L1: ||A x-y||_1 = 8.373619e+03, REL_OB, iter = 2
  f(x^*) = 8.765680e+03, rel_eval = 2.584757e-05
   Relative norm of the primal variables: 8.110997e-03
   Relative norm of the dual variables: 7.650032e-03
Iter 024:     prox_L1: ||A x-y||_1 = 8.437672e+03, REL_OB, iter = 2
  f(x^*) = 8.765777e+03, rel_eval = 1.107257e-05
   Relative norm of the primal variables: 7.579418e-03
   Relative norm of the dual variables: 7.174434e-03
Iter 025:     prox_L1: ||A x-y||_1 = 8.497333e+03, REL_OB, iter = 2
  f(x^*) = 8.765953e+03, rel_eval = 2.007668e-05
   Relative norm of the primal variables: 7.114197e-03
   Relative norm of the dual variables: 6.744264e-03
Iter 026:     prox_L1: ||A x-y||_1 = 8.552731e+03, REL_OB, iter = 2
  f(x^*) = 8.766071e+03, rel_eval = 1.351357e-05
   Relative norm of the primal variables: 6.710197e-03
   Relative norm of the dual variables: 6.389027e-03
Iter 027:     prox_L1: ||A x-y||_1 = 8.603578e+03, REL_OB, iter = 2
  f(x^*) = 8.766050e+03, rel_eval = 2.445575e-06
   Relative norm of the primal variables: 6.377277e-03
   Relative norm of the dual variables: 6.045993e-03
Iter 028:     prox_L1: ||A x-y||_1 = 8.651597e+03, REL_OB, iter = 2
  f(x^*) = 8.765960e+03, rel_eval = 1.019472e-05
   Relative norm of the primal variables: 6.077534e-03
   Relative norm of the dual variables: 5.782314e-03
Iter 029:     prox_L1: ||A x-y||_1 = 8.697924e+03, REL_OB, iter = 2
  f(x^*) = 8.765928e+03, rel_eval = 3.666064e-06
   Relative norm of the primal variables: 5.796173e-03
   Relative norm of the dual variables: 5.556058e-03
Iter 030:     prox_L1: ||A x-y||_1 = 8.739926e+03, REL_OB, iter = 2
  f(x^*) = 8.765939e+03, rel_eval = 1.264795e-06
   Relative norm of the primal variables: 5.565110e-03
   Relative norm of the dual variables: 5.275399e-03
Iter 031:     prox_L1: ||A x-y||_1 = 8.779018e+03, REL_OB, iter = 2
  f(x^*) = 8.766037e+03, rel_eval = 1.112357e-05
   Relative norm of the primal variables: 5.256417e-03
   Relative norm of the dual variables: 5.020134e-03
Iter 032:     prox_L1: ||A x-y||_1 = 8.814867e+03, REL_OB, iter = 2
  f(x^*) = 8.766129e+03, rel_eval = 1.051612e-05
   Relative norm of the primal variables: 5.004726e-03
   Relative norm of the dual variables: 4.766338e-03
Iter 033:     prox_L1: ||A x-y||_1 = 8.848414e+03, REL_OB, iter = 2
  f(x^*) = 8.766166e+03, rel_eval = 4.175801e-06
   Relative norm of the primal variables: 4.762357e-03
   Relative norm of the dual variables: 4.554970e-03
Iter 034:     prox_L1: ||A x-y||_1 = 8.880091e+03, REL_OB, iter = 2
  f(x^*) = 8.766134e+03, rel_eval = 3.583860e-06
   Relative norm of the primal variables: 4.568377e-03
   Relative norm of the dual variables: 4.357593e-03
Iter 035:     prox_L1: ||A x-y||_1 = 8.909905e+03, REL_OB, iter = 2
  f(x^*) = 8.766031e+03, rel_eval = 1.172481e-05
   Relative norm of the primal variables: 4.361031e-03
   Relative norm of the dual variables: 4.172002e-03
Iter 036:     prox_L1: ||A x-y||_1 = 8.937713e+03, REL_OB, iter = 2
  f(x^*) = 8.765993e+03, rel_eval = 4.329962e-06
   Relative norm of the primal variables: 4.200791e-03
   Relative norm of the dual variables: 4.001096e-03
Iter 037:     prox_L1: ||A x-y||_1 = 8.963975e+03, REL_OB, iter = 2
  f(x^*) = 8.766008e+03, rel_eval = 1.713179e-06
   Relative norm of the primal variables: 3.999647e-03
   Relative norm of the dual variables: 3.842004e-03
Iter 038:     prox_L1: ||A x-y||_1 = 8.988169e+03, REL_OB, iter = 2
  f(x^*) = 8.766051e+03, rel_eval = 4.908652e-06
   Relative norm of the primal variables: 3.842982e-03
   Relative norm of the dual variables: 3.666229e-03
Iter 039:     prox_L1: ||A x-y||_1 = 9.010132e+03, REL_OB, iter = 2
  f(x^*) = 8.766053e+03, rel_eval = 1.961969e-07
   Relative norm of the primal variables: 3.645311e-03
   Relative norm of the dual variables: 3.478540e-03
Iter 040:     prox_L1: ||A x-y||_1 = 9.030217e+03, REL_OB, iter = 2
  f(x^*) = 8.766034e+03, rel_eval = 2.190672e-06
   Relative norm of the primal variables: 3.461220e-03
   Relative norm of the dual variables: 3.303860e-03
Iter 041:     prox_L1: ||A x-y||_1 = 9.049104e+03, REL_OB, iter = 2
  f(x^*) = 8.766076e+03, rel_eval = 4.820851e-06
   Relative norm of the primal variables: 3.289197e-03
   Relative norm of the dual variables: 3.154955e-03
Iter 042:     prox_L1: ||A x-y||_1 = 9.066786e+03, REL_OB, iter = 2
  f(x^*) = 8.766151e+03, rel_eval = 8.589505e-06
   Relative norm of the primal variables: 3.161770e-03
   Relative norm of the dual variables: 3.019240e-03
Iter 043:     prox_L1: ||A x-y||_1 = 9.083023e+03, REL_OB, iter = 2
  f(x^*) = 8.766219e+03, rel_eval = 7.754105e-06
   Relative norm of the primal variables: 3.027163e-03
   Relative norm of the dual variables: 2.893297e-03
Iter 044:     prox_L1: ||A x-y||_1 = 9.098192e+03, REL_OB, iter = 2
  f(x^*) = 8.766268e+03, rel_eval = 5.552690e-06
   Relative norm of the primal variables: 2.903523e-03
   Relative norm of the dual variables: 2.780700e-03
Iter 045:     prox_L1: ||A x-y||_1 = 9.112230e+03, REL_OB, iter = 2
  f(x^*) = 8.766315e+03, rel_eval = 5.354740e-06
   Relative norm of the primal variables: 2.791270e-03
   Relative norm of the dual variables: 2.662385e-03
Iter 046:     prox_L1: ||A x-y||_1 = 9.125406e+03, REL_OB, iter = 2
  f(x^*) = 8.766364e+03, rel_eval = 5.596640e-06
   Relative norm of the primal variables: 2.670904e-03
   Relative norm of the dual variables: 2.561567e-03
Iter 047:     prox_L1: ||A x-y||_1 = 9.138245e+03, REL_OB, iter = 2
  f(x^*) = 8.766381e+03, rel_eval = 1.912412e-06
   Relative norm of the primal variables: 2.572164e-03
   Relative norm of the dual variables: 2.465576e-03
Iter 048:     prox_L1: ||A x-y||_1 = 9.150189e+03, REL_OB, iter = 2
  f(x^*) = 8.766334e+03, rel_eval = 5.361341e-06
   Relative norm of the primal variables: 2.474696e-03
   Relative norm of the dual variables: 2.364278e-03
Iter 049:     prox_L1: ||A x-y||_1 = 9.160907e+03, REL_OB, iter = 2
  f(x^*) = 8.766269e+03, rel_eval = 7.380443e-06
   Relative norm of the primal variables: 2.369123e-03
   Relative norm of the dual variables: 2.265610e-03
Iter 050:     prox_L1: ||A x-y||_1 = 9.170517e+03, REL_OB, iter = 2
  f(x^*) = 8.766182e+03, rel_eval = 9.938589e-06
   Relative norm of the primal variables: 2.278383e-03
   Relative norm of the dual variables: 2.172509e-03
Iter 051:     prox_L1: ||A x-y||_1 = 9.179663e+03, REL_OB, iter = 2
  f(x^*) = 8.766140e+03, rel_eval = 4.767338e-06
   Relative norm of the primal variables: 2.181186e-03
   Relative norm of the dual variables: 2.093109e-03
Iter 052:     prox_L1: ||A x-y||_1 = 9.188173e+03, REL_OB, iter = 2
  f(x^*) = 8.766154e+03, rel_eval = 1.509017e-06
   Relative norm of the primal variables: 2.099914e-03
   Relative norm of the dual variables: 2.011796e-03
Iter 053:     prox_L1: ||A x-y||_1 = 9.196121e+03, REL_OB, iter = 2
  f(x^*) = 8.766167e+03, rel_eval = 1.488615e-06
   Relative norm of the primal variables: 2.023117e-03
   Relative norm of the dual variables: 1.945785e-03
Iter 054:     prox_L1: ||A x-y||_1 = 9.203776e+03, REL_OB, iter = 2
  f(x^*) = 8.766186e+03, rel_eval = 2.207196e-06
   Relative norm of the primal variables: 1.958194e-03
   Relative norm of the dual variables: 1.877329e-03
Iter 055:     prox_L1: ||A x-y||_1 = 9.211331e+03, REL_OB, iter = 2
  f(x^*) = 8.766194e+03, rel_eval = 9.533326e-07
   Relative norm of the primal variables: 1.882875e-03
   Relative norm of the dual variables: 1.811801e-03
Iter 056:     prox_L1: ||A x-y||_1 = 9.218483e+03, REL_OB, iter = 2
  f(x^*) = 8.766181e+03, rel_eval = 1.501649e-06
   Relative norm of the primal variables: 1.814439e-03
   Relative norm of the dual variables: 1.749149e-03
Iter 057:     prox_L1: ||A x-y||_1 = 9.224671e+03, REL_OB, iter = 2
  f(x^*) = 8.766147e+03, rel_eval = 3.904031e-06
   Relative norm of the primal variables: 1.752864e-03
   Relative norm of the dual variables: 1.671262e-03
Iter 058:     prox_L1: ||A x-y||_1 = 9.230562e+03, REL_OB, iter = 2
  f(x^*) = 8.766139e+03, rel_eval = 9.229504e-07
   Relative norm of the primal variables: 1.668520e-03
   Relative norm of the dual variables: 1.609178e-03
Iter 059:     prox_L1: ||A x-y||_1 = 9.236304e+03, REL_OB, iter = 2
  f(x^*) = 8.766153e+03, rel_eval = 1.565187e-06
   Relative norm of the primal variables: 1.609461e-03
   Relative norm of the dual variables: 1.555104e-03
Iter 060:     prox_L1: ||A x-y||_1 = 9.241692e+03, REL_OB, iter = 2
  f(x^*) = 8.766178e+03, rel_eval = 2.885387e-06
   Relative norm of the primal variables: 1.561028e-03
   Relative norm of the dual variables: 1.502883e-03
Iter 061:     prox_L1: ||A x-y||_1 = 9.246903e+03, REL_OB, iter = 2
  f(x^*) = 8.766190e+03, rel_eval = 1.387954e-06
   Relative norm of the primal variables: 1.509324e-03
   Relative norm of the dual variables: 1.450959e-03
Iter 062:     prox_L1: ||A x-y||_1 = 9.251709e+03, REL_OB, iter = 2
  f(x^*) = 8.766206e+03, rel_eval = 1.880607e-06
   Relative norm of the primal variables: 1.454354e-03
   Relative norm of the dual variables: 1.394729e-03
Iter 063:     prox_L1: ||A x-y||_1 = 9.256223e+03, REL_OB, iter = 2
  f(x^*) = 8.766222e+03, rel_eval = 1.748880e-06
   Relative norm of the primal variables: 1.392829e-03
   Relative norm of the dual variables: 1.342811e-03
Iter 064:     prox_L1: ||A x-y||_1 = 9.260675e+03, REL_OB, iter = 2
  f(x^*) = 8.766217e+03, rel_eval = 5.863103e-07
   Relative norm of the primal variables: 1.347441e-03
   Relative norm of the dual variables: 1.302894e-03
Iter 065:     prox_L1: ||A x-y||_1 = 9.265036e+03, REL_OB, iter = 2
  f(x^*) = 8.766204e+03, rel_eval = 1.477133e-06
   Relative norm of the primal variables: 1.307782e-03
   Relative norm of the dual variables: 1.263214e-03
Iter 066:     prox_L1: ||A x-y||_1 = 9.268913e+03, REL_OB, iter = 2
  f(x^*) = 8.766199e+03, rel_eval = 5.420141e-07
   Relative norm of the primal variables: 1.271598e-03
   Relative norm of the dual variables: 1.217189e-03
Iter 067:     prox_L1: ||A x-y||_1 = 9.272559e+03, REL_OB, iter = 2
  f(x^*) = 8.766171e+03, rel_eval = 3.195931e-06
   Relative norm of the primal variables: 1.220538e-03
   Relative norm of the dual variables: 1.177453e-03
Iter 068:     prox_L1: ||A x-y||_1 = 9.276007e+03, REL_OB, iter = 2
  f(x^*) = 8.766156e+03, rel_eval = 1.734033e-06
   Relative norm of the primal variables: 1.183228e-03
   Relative norm of the dual variables: 1.139192e-03
Iter 069:     prox_L1: ||A x-y||_1 = 9.279328e+03, REL_OB, iter = 2
  f(x^*) = 8.766156e+03, rel_eval = 5.600633e-08
   Relative norm of the primal variables: 1.142868e-03
   Relative norm of the dual variables: 1.105386e-03
Iter 070:     prox_L1: ||A x-y||_1 = 9.282317e+03, REL_OB, iter = 2
  f(x^*) = 8.766172e+03, rel_eval = 1.813243e-06
   Relative norm of the primal variables: 1.109329e-03
   Relative norm of the dual variables: 1.066156e-03
Iter 071:     prox_L1: ||A x-y||_1 = 9.285030e+03, REL_OB, iter = 2
  f(x^*) = 8.766179e+03, rel_eval = 7.561667e-07
   Relative norm of the primal variables: 1.066220e-03
   Relative norm of the dual variables: 1.029140e-03
Iter 072:     prox_L1: ||A x-y||_1 = 9.287696e+03, REL_OB, iter = 2
  f(x^*) = 8.766195e+03, rel_eval = 1.860987e-06
   Relative norm of the primal variables: 1.032459e-03
   Relative norm of the dual variables: 1.002592e-03
Iter 073:     prox_L1: ||A x-y||_1 = 9.290345e+03, REL_OB, iter = 2
  f(x^*) = 8.766228e+03, rel_eval = 3.791296e-06
   Relative norm of the primal variables: 1.012513e-03
   Relative norm of the dual variables: 9.774775e-04
Iter 074:     prox_L1: ||A x-y||_1 = 9.292937e+03, REL_OB, iter = 2
  f(x^*) = 8.766273e+03, rel_eval = 5.051593e-06
   Relative norm of the primal variables: 9.823543e-04
   Relative norm of the dual variables: 9.492229e-04

 ADMM:
  f(x^*) = 8.766273e+03, rel_eval = 5.051593e-06
   Relative norm of the primal variables: 9.823543e-04
   Relative norm of the dual variables: 9.492229e-04
 74 iterations
 Stopping criterion: REL_NORM_PRIMAL_DUAL

References:

P. Combettes and J. Pesquet. Proximal splitting methods in signal processing. Fixed-Point Algorithms for Inverse Problems in Science and Engineering, pages 185--212, 2011.

S. Boyd, N. Parikh, E. Chu, B. Peleato, and J. Eckstein. Distributed optimization and statistical learning via the alternating direction method of multipliers. Foundations and Trends in Machine Learning, 3(1):1--122, 2011.
